Docker Volumes Explained — Named, Anonymous & Bind Mounts

Here's an experiment that hurts: run MongoDB in a container, insert a document, delete the container — and watch your database vanish. This guide gets Docker volumes explained through that exact pain, straight from our class session on EC2: first the data-loss problem with a real mongo:8.2 container, then the fix with a named volume that survives docker rm, the mystery of anonymous volumes (those hash-named things flooding docker volume ls), and bind mounts for folders you control — each with a clear diagram. The networks lesson covered how containers talk; this one covers how they remember.

In this guide, you will:

  • Watch a MongoDB container lose its data the moment it's removed — and understand exactly why
  • Fix it with a named volume: -v srinu-volume:/data/db, then destroy and resurrect the container with the data intact
  • See where volumes really live: /var/lib/docker/volumes/srinu-volume/_data, WiredTiger files and all
  • Solve the mystery of anonymous volumes — why mongo creates hash-named volumes you never asked for
  • Learn bind mounts and the one-character rule that separates them from named volumes
  • Master the 4 commands: volume ls, create, inspect, rm

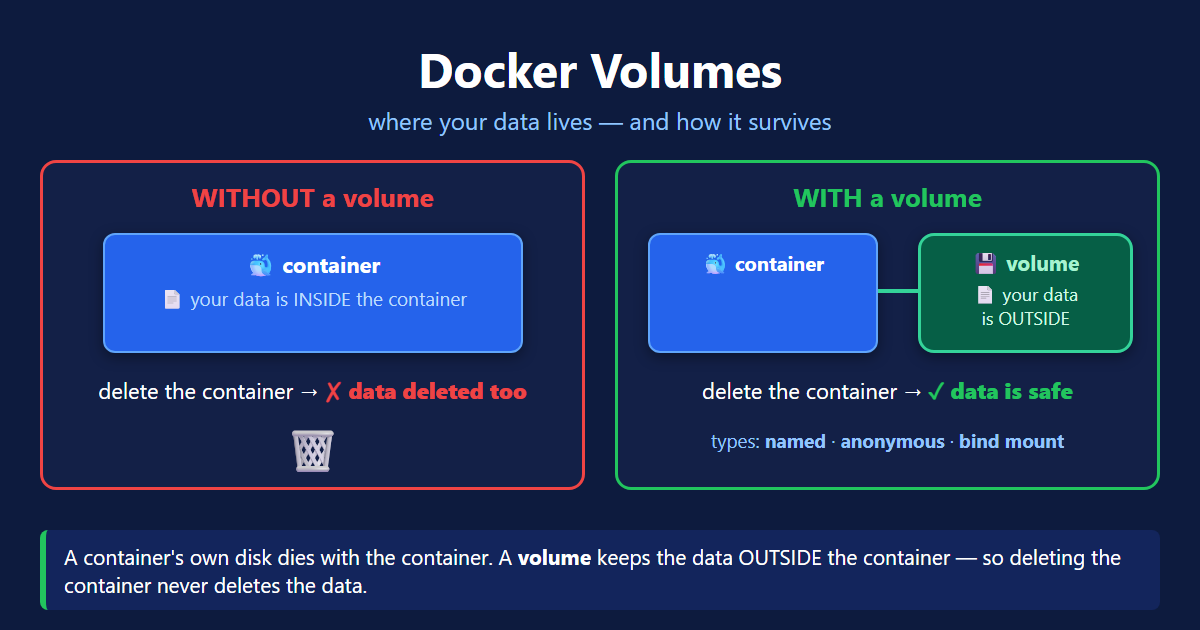

Docker volumes explained overview — without a volume the mongodb container's data dies with docker rm, with a named volume the data survives on the host

Why Docker Volumes Exist — The Data Loss Problem

A container's filesystem has a thin writable layer on top of the image — every file your app writes lands there. The catch: that layer belongs to the container, and docker rm deletes them together.

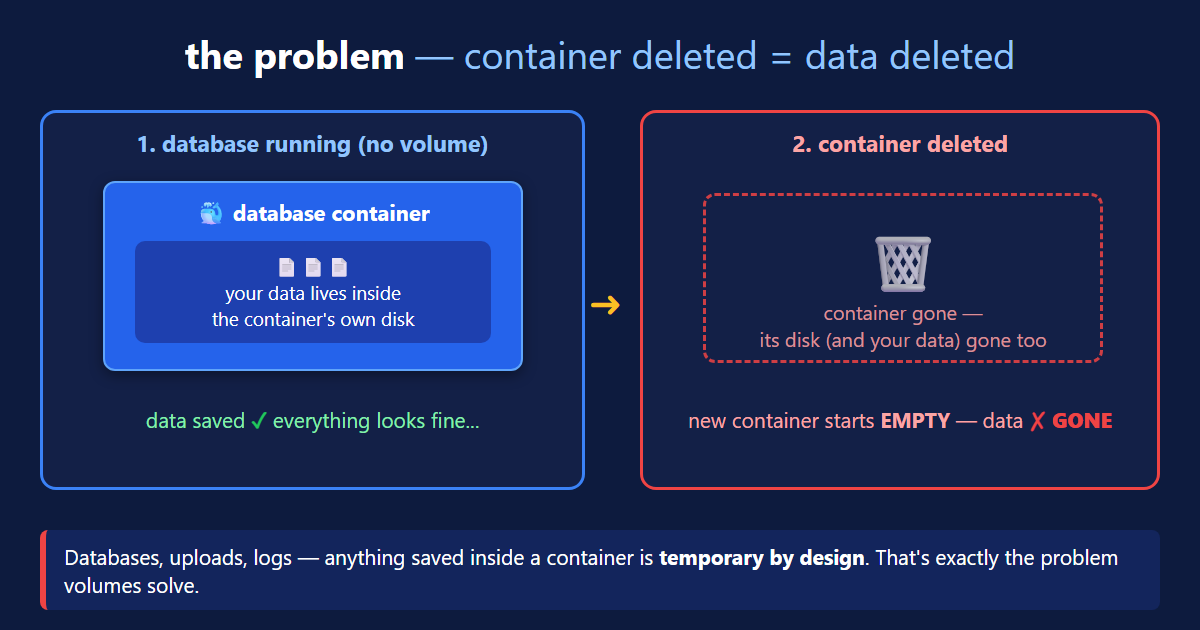

Docker volumes data loss problem diagram — users database inside the mongodb container writable layer is deleted together with the container on docker rm

Here's the experiment, step by step:

terminal — MongoDB with NO volume (data lost)
# THE PROBLEM — watch MongoDB lose everything

docker run -d --name mongodb mongo:8.2    # no -v flag!
docker exec -it mongodb /bin/sh
mongosh

use users
db.users.insertOne({name:"srinu"})
db.users.find()                           # data is there ✓
exit

# destroy the container:
docker stop mongodb
docker rm mongodb

# start a FRESH one and look again:
docker run -d --name mongodb mongo:8.2
docker exec -it mongodb /bin/sh -c mongosh
show dbs                                  # users db... GONE ✗
🚫

This isn't a bug — containers are disposable by design. Deleting one is supposed to leave no trace. The problem is that databases are the opposite: their entire job is remembering. Volumes are how both stay true.

The 3 Ways to Keep Data

Type-v syntaxWho picks the locationVerdict
Named volume-v srinu-volume:/data/dbDocker (/var/lib/docker/volumes/...)✅ the production pattern
Anonymous volume(none — auto-created)Docker, with a random hash name⚠️ data gets orphaned
Bind mount-v /home/ubuntu/mongo-data:/data/dbYou — any host folder✅ dev & direct file access

Named Volumes — The MongoDB Practical

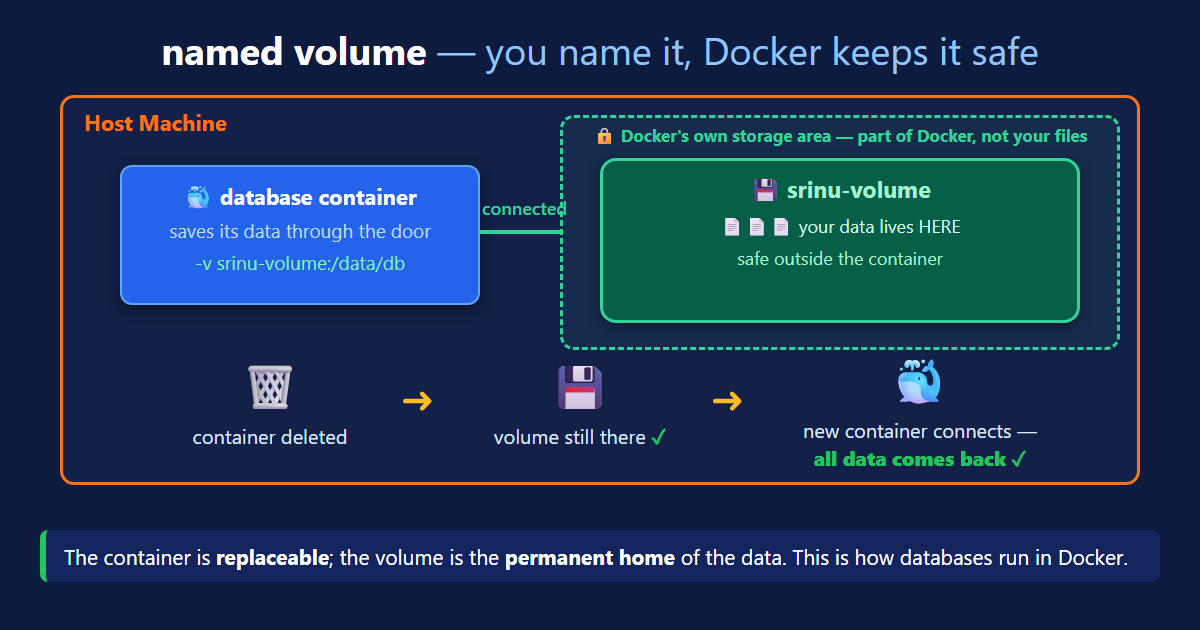

Docker volumes named volume diagram — mongodb container mounts srinu-volume which lives at /var/lib/docker/volumes/srinu-volume/_data on the host and survives container deletion

One flag changes everything — this is the exact command from class:

terminal — run MongoDB with a named volume
# THE FIX — a NAMED volume (the exact command from class)

docker run -d --name mongodb -v srinu-volume:/data/db mongo:8.2
#                            │  │            │
#                            │  │            └── where Mongo writes
#                            │  │                its data INSIDE the
#                            │  │                container
#                            │  └── the volume's NAME (yours to pick;
#                            │      created automatically on first use)
#                            └── -v = Volume: name:container-path

# no volume called srinu-volume yet? → Docker creates it.
# everything Mongo writes now lands OUTSIDE the container.

Now the full destroy-and-resurrect cycle, step by step:

mongosh — insert a document
# put real data in — through mongosh

docker exec -it mongodb /bin/sh
mongosh

use users
db.users.insertOne({name:"srinu"})
db.users.find()                    # ✓ saved
exit

And the part that makes it click — the volume is just a folder on the host. We went and looked:

terminal — inside /var/lib/docker/volumes
# WHERE does the data actually live? On the host — go look:

sudo -i
cd /var/lib/docker/volumes/srinu-volume/_data
ls -l
# → WiredTiger.wt, collection-*.wt, journal/ ... the REAL database files

# every named volume = a real folder:
#   /var/lib/docker/volumes/<volume-name>/_data

Memory hook: the container is a hotel room — stripped and reset for the next guest. The volume is the locker downstairs: your stuff stays until you empty it, no matter how many guests pass through the room.

Anonymous Volumes — The Mystery Hashes

Run docker volume ls and you may see something strange: volumes you never created, named like 79a62b0dd3ce69a6d... Where did they come from?

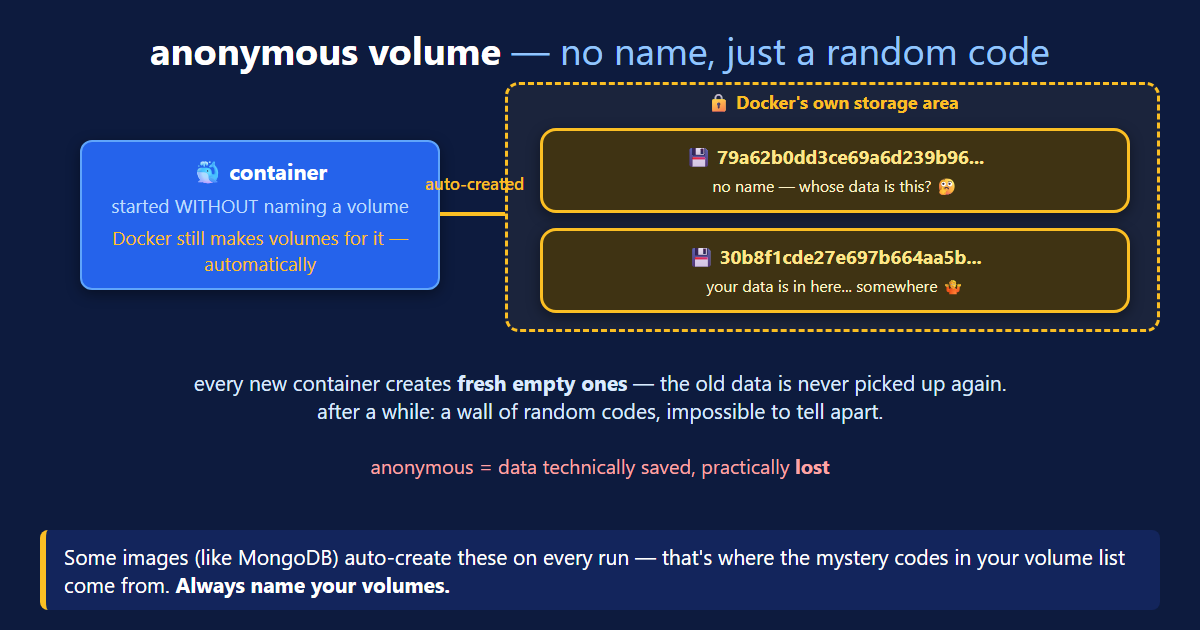

Docker volumes anonymous volume diagram — the mongo image auto-creates hash-named volumes for /data/db and /data/configdb on every run making the data practically lost

terminal — the anonymous volume mystery
# THE MYSTERY — where did these hash-named volumes come from?

docker volume ls
# local     30b8f1cde27e697b664aa5b30dd0fb0ad9...   ← what are these?!
# local     79a62b0dd3ce69a6d239b9655bce9c1fb8...
# local     srinu-volume

# answer: the mongo image declares VOLUME /data/db and
# /data/configdb — so every container WITHOUT -v
# auto-creates hash-named ANONYMOUS volumes.

# the trap: every new run creates FRESH EMPTY ones —
# old data is never reattached. Always give your data a NAME.

Bind Mounts — Your Folder, Your Rules

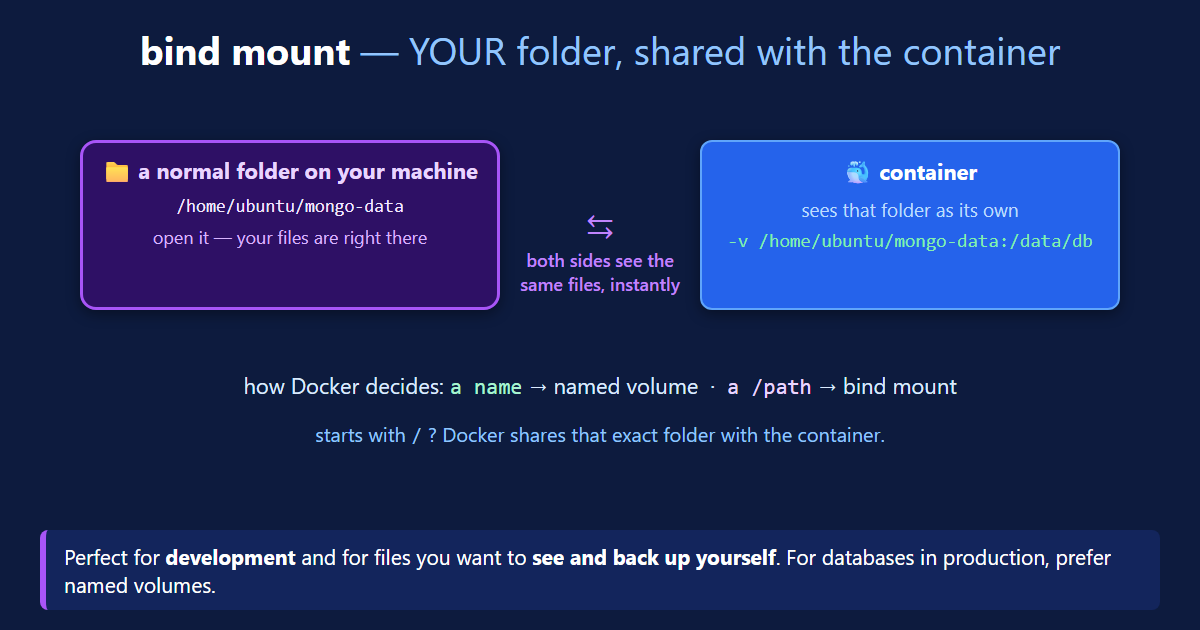

Docker volumes bind mount diagram — a host folder /home/ubuntu/mongo-data you chose is mounted two-way into the mongodb container at /data/db

terminal — bind mount a host folder
# BIND MOUNT — mount a folder YOU chose, see the files yourself

mkdir /home/ubuntu/mongo-data

docker run -d --name mongodb \
  -v /home/ubuntu/mongo-data:/data/db mongo:8.2
#    │                       └── container path (same as before)
#    └── a REAL PATH on the host instead of a name

ls -l /home/ubuntu/mongo-data
# → the database files, in YOUR folder, visible with plain ls

The entire named-vs-bind decision comes down to one character — compare the two:

terminal — named volume syntax
# NAMED VOLUME — first part is a NAME (no slashes)

docker run -v srinu-volume:/data/db mongo:8.2
#             └── just a name → Docker manages it at
#                 /var/lib/docker/volumes/srinu-volume/_data

# best for: databases and production.

The Docker Volume Commands

Same noun-verb grammar as networks — docker volume <verb>:

terminal — docker volume ls
# docker volume ls — list every volume

docker volume ls

# careful: "docker volume ps" and "docker volumes" don't exist
terminal — docker volume create
# docker volume create — make a volume before using it

docker volume create app-data

# optional — "docker run -v app-data:/data/db" also
# creates it automatically on first use
terminal — docker volume inspect
# docker volume inspect — where does it live?

docker volume inspect srinu-volume

# the line that matters in the output:
# "Mountpoint": "/var/lib/docker/volumes/srinu-volume/_data"
# → the real folder on the host
terminal — docker volume rm
# docker volume rm — delete a volume (and its DATA!)

docker volume rm srinu-volume

# fails with "volume is in use" while a container
# still uses it → docker rm the container first

And the whole lesson as one practiceable block:

terminal — complete session
# COMPLETE SESSION — the whole lesson in one block

docker volume create srinu-volume                      # 1. create
docker volume ls                                       # 2. it's there
docker run -d --name mongodb -v srinu-volume:/data/db mongo:8.2   # 3. attach
docker exec -it mongodb /bin/sh -c mongosh             # 4. insert data
docker volume inspect srinu-volume                     # 5. see the Mountpoint
docker stop mongodb                                    # 6. kill the container
docker rm mongodb
docker run -d --name mongo-db -v srinu-volume:/data/db mongo:8.2  # 7. reborn — data back ✓
docker stop mongo-db && docker rm mongo-db             # 8. cleanup
docker volume rm srinu-volume                          # 9. volume (+ data!) gone

Docker Volumes Quick Reference

I want to...Command
List all volumesdocker volume ls (no volume ps!)
Create a volumedocker volume create app-data
See where it lives + detailsdocker volume inspect app-data
Attach it to a containerdocker run -v app-data:/data/db mongo:8.2
Bind-mount my own folderdocker run -v /home/ubuntu/mongo-data:/data/db mongo:8.2
Delete a volume (and its data)docker volume rm app-data
RememberRule
docker rm containervolume survives
docker volume rmdata is gone for real
name: before the colonnamed volume
/path: before the colonbind mount
hash names in volume lsanonymous volumes (an image's VOLUME instruction)

What's Next

You now own the full data story: why a container's writable layer dies with docker rm, how -v srinu-volume:/data/db moves the data to /var/lib/docker/volumes/srinu-volume/_data where it outlives any container, why mongo's VOLUME instruction floods your machine with anonymous hashes, and when a bind mount's /path: beats a named volume's name:. Full details live in the official volumes documentation (opens in a new tab) and bind mounts guide (opens in a new tab), and the mongo image page (opens in a new tab) documents the /data/db convention we used. Next up, the pieces come together: networks + volumes + multiple containers = real applications.

← Back to Docker Network Types

Continue to Docker Compose →


Frequently Asked Questions

What is a Docker volume and why do containers lose data without one?

Every file a container writes goes into its writable layer — a thin disk glued to that one container — and docker rm deletes the writable layer together with the container. So a MongoDB container without a volume loses every database the moment it is removed: db.users.insertOne({name:"srinu"}) was there before docker rm and show dbs no longer listed users afterwards. A Docker volume solves this by storing the data outside the container, in a folder managed by Docker on the host (/var/lib/docker/volumes/...), mounted into the container at a path like /data/db. The container becomes replaceable; the volume is the permanent home of the data.

What is the difference between a named volume and a bind mount?

Both put data outside the container; the difference is who picks the location. A named volume (-v srinu-volume:/data/db) is managed by Docker — it lives under /var/lib/docker/volumes/srinu-volume/_data, and Docker handles permissions and location; best for databases and production. A bind mount (-v /home/ubuntu/mongo-data:/data/db) mounts an exact host folder you chose — you can ls the files directly, back them up, or live-sync source code during development. The syntax rule: if the part before the colon is a plain name it's a named volume; if it starts with / or ./ it's a bind mount.

What is an anonymous Docker volume?

An anonymous volume is one Docker creates automatically with a random hash name, like 79a62b0dd3ce69a6d2... It happens when an image declares VOLUME paths in its Dockerfile and you run it without -v: the mongo image declares /data/db and /data/configdb, so every mongo container silently creates up to two anonymous volumes — that is why docker volume ls can show a wall of hashes. They are a trap: each new docker run creates fresh empty ones (old data is never reattached), and after a while you cannot tell which hash held what. The data is technically saved but practically lost — always name your volumes.

Where does Docker store volume data on the host machine?

Named and anonymous volumes live under /var/lib/docker/volumes/ on the host — each volume is a folder named after the volume (or its hash), with the actual files inside a _data subfolder. You can verify it with sudo: /var/lib/docker/volumes/srinu-volume/_data contained MongoDB's real storage files — WiredTiger.wt, collection-*.wt, index-*.wt, journal/. You can also find the exact path for any volume with docker volume inspect, which prints it as the Mountpoint field. Bind mounts are different: they live wherever you pointed them, like /home/ubuntu/mongo-data.

How do I persist MongoDB data in Docker?

Mount a named volume over MongoDB's data directory: docker run -d --name mongodb -v srinu-volume:/data/db mongo:8.2. Mongo writes everything to /data/db inside the container, and the volume redirects those writes to the host. The proof from class: insert a document, docker stop + docker rm the container completely, then start a brand-new container with the same -v srinu-volume:/data/db — show dbs lists users again and db.users.find() returns the same document with the same ObjectId. The container was destroyed and replaced; the data never moved.

How do I create, inspect, and delete a Docker volume?

Four commands, same noun-verb grammar as networks: docker volume ls lists all volumes (anonymous ones show as hashes); docker volume create app-data makes one explicitly (though -v app-data:/path also auto-creates it on first use); docker volume inspect app-data shows the details, most usefully Mountpoint — the real host folder; docker volume rm app-data deletes the volume and its data, and fails with "volume is in use" while a container still uses it, so remove the container first. Watch the spelling: docker volume ps and docker volumes are not commands — both fail.

Does docker rm delete the volume too?

No — and that is the whole point. docker rm deletes the container and its writable layer, but every volume attached to it stays on disk. Run docker rm mongodb and the container goes while docker volume ls still shows srinu-volume, and a new container with the same -v got all the data back. Volumes are only deleted when you ask explicitly: docker volume rm <name> removes one (data included), and docker rm -v <container> also removes the container's anonymous volumes. That independence is what makes containers disposable and data permanent.
